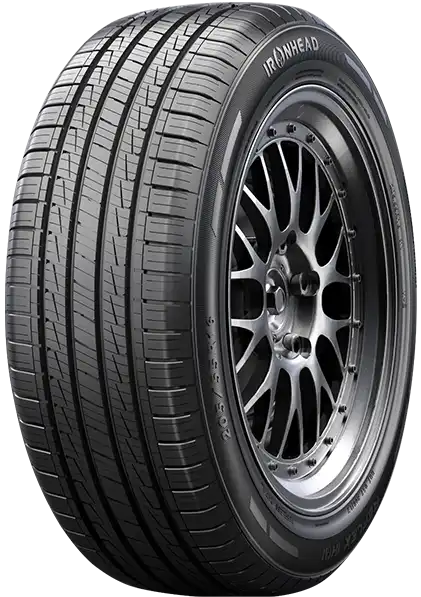

A/S IH01
The Ironhead Reflex AS IH01 is an all-season touring tire designed for excellent handling and safety in all weather conditions. The Reflex IH01 is built with a wide tread pattern that features circumferential grooves to push water away quickly and maintain excellent traction in wet conditions. The rubber compounding delivers a quiet, comfortable ride and the performance offered in wet and dry conditions, makes the Reflex IH01 the perfect choice for everyday use.
CENTER RIB WITH ANGLED SIPES
Provides confident stability with enhanced traction
BALANCED VARIABLE PITCH SHOULDER
Promotes quiet and comfortable ride.
FULL SIPED INNER THREAD BLOCKS
Efficient water evacuation design promotes enhanced wet performance.
A/S IH01
| Tamaño | L.I. / S.R. | T.D. | O.D. | S.W. | R.W. | UTQG |
CARGA MÁXIMA SIMPLE |
|---|---|---|---|---|---|---|---|
| 32/in. | in. | in. | in. | lbs@psi | |||
| 175/65R14 | 82H | 10 | 23 | 7.0 | 5.0 | 420 A A | 1047@44 |
| 175/70R14 | 84T | 10 | 24 | 7.0 | 5.0 | 420 A A | 1102@44 |
| 185/65R14 | 86H | 10 | 23 | 7.4 | 5.5 | 420 A A | 1168@44 |
| 195/70R14 | 91T | 10 | 25 | 7.9 | 6.0 | 420 A A | 1356@44 |
| 185/70R14 | 88T | 10 | 24 | 7.4 | 5.5 | 420 A A | 1235@44 |
| 175/65R15 | 84H | 10 | 24 | 7.0 | 5.0 | 420 A A | 1102@44 |
| 185/55R15 | 82H | 10 | 23 | 7.6 | 6.0 | 420 A A | 1047@44 |
| 185/60R15 | 84H | 10 | 24 | 7.4 | 5.5 | 420 A A | 1102@44 |
| 185/65R15 | 88H | 10 | 24 | 7.4 | 5.5 | 420 A A | 1235@44 |
| 195/55R15 | 85V | 10 | 23 | 7.9 | 6.0 | 420 A A | 1135@44 |
| 195/60R15 | 88H | 10 | 24 | 7.9 | 6.0 | 420 A A | 1235@44 |
| 195/65R15 | 91H | 10 | 25 | 7.9 | 6.0 | 420 A A | 1356@44 |
| 205/60R15 | 91H | 10 | 25 | 8.2 | 6.0 | 420 A A | 1356@44 |
| 205/65R15 | 94H | 10 | 25 | 8.2 | 6.0 | 420 A A | 1477@44 |
| 205/70R15 | 96T | 10 | 26 | 8.2 | 6.0 | 420 A A | 1565@44 |
| 215/70R15 | 98T | 10 | 27 | 8.7 | 6.5 | 420 A A | 1653@44 |
| 195/50R16 | 84V | 10 | 24 | 7.9 | 6.0 | 420 A A | 1102@44 |
| 195/55R16 | 87H | 10 | 24 | 7.9 | 6.0 | 420 A A | 1201@44 |
| 205/50R16 | 87V | 10 | 24 | 8.4 | 6.5 | 420 A A | 1201@44 |
| 205/55R16 | 91V | 10 | 25 | 8.4 | 6.5 | 420 A A | 1356@44 |
| 205/60R16 | 92V | 10 | 26 | 8.2 | 6.0 | 420 A A | 1389@44 |
| 205/65R16 | 95H | 10 | 26 | 8.2 | 6.0 | 420 A A | 1521@44 |
| 215/55R16 | 97H XL | 10 | 25 | 8.9 | 7.0 | 420 A A | 1609@50 |
| 215/60R16 | 95V | 10 | 26 | 8.7 | 6.5 | 420 A A | 1521@44 |
| 215/65R16 | 98T | 10 | 27 | 8.7 | 6.5 | 420 A A | 1653@44 |
| 225/55R16 | 99H XL | 10 | 26 | 9.2 | 7.0 | 420 A A | 1709@50 |
| 225/60R16 | 98H | 10 | 27 | 9.0 | 6.5 | 420 A A | 1653@44 |
| 225/65R16 | 100T | 10 | 27 | 9.0 | 6.5 | 420 A A | 1764@44 |
| 235/60R16 | 100V | 10 | 27 | 9.4 | 7.0 | 420 A A | 1764@44 |
| 235/65R16 | 103T | 10 | 28 | 9.4 | 7.0 | 420 A A | 1929@44 |
| 205/50R17 | 93V XL | 10 | 25 | 8.4 | 6.5 | 420 A A | 1433@50 |
| 215/45R17 | 87W | 10 | 25 | 8.4 | 7.0 | 420 A A | 1201@44 |
| 215/50R17 | 95V XL | 10 | 26 | 8.9 | 7.0 | 420 A A | 1521@50 |
| 215/55R17 | 94V | 10 | 26 | 8.9 | 7.0 | 420 A A | 1477@44 |
| 215/60R17 | 96T | 10 | 27 | 8.7 | 6.5 | 420 A A | 1565@44 |
| 215/65R17 | 99T | 10 | 28 | 8.7 | 6.5 | 420 A A | 1709@44 |
| 225/45R17 | 94W XL | 10 | 25 | 8.9 | 7.5 | 420 A A | 1477@50 |
| 225/50R17 | 94V | 10 | 26 | 9.2 | 7.0 | 420 A A | 1477@44 |
| 225/55R17 | 97V | 10 | 27 | 9.2 | 7.0 | 420 A A | 1609@44 |
| 225/60R17 | 99T | 10 | 28 | 9.0 | 6.5 | 420 A A | 1709@44 |
| 225/65R17 | 102T | 10 | 29 | 9.0 | 6.5 | 420 A A | 1874@44 |
| 235/45R17 | 94H | 10 | 25 | 9.3 | 8.0 | 420 A A | 1477@44 |
| 235/55R17 | 99H | 10 | 27 | 9.6 | 7.5 | 420 A A | 1709@44 |
| 235/60R17 | 102V | 10 | 28 | 9.4 | 7.0 | 420 A A | 1874@44 |
| 225/40R18 | 92H XL | 10 | 25 | 9.1 | 8.0 | 420 A A | 1389@50 |
| 225/45R18 | 95W XL | 10 | 26 | 8.9 | 7.5 | 420 A A | 1521@50 |
| 225/50R18 | 95H | 10 | 27 | 9.2 | 7.0 | 420 A A | 1521@44 |
| 225/60R18 | 100H | 10 | 29 | 9.0 | 6.5 | 420 A A | 1764@44 |
| 235/45R18 | 94V | 10 | 26 | 9.3 | 8.0 | 420 A A | 1477@44 |
| 235/50R18 | 97H | 10 | 27 | 9.6 | 7.5 | 420 A A | 1609@44 |
| 235/55R18 | 100V | 10 | 28 | 9.6 | 7.5 | 420 A A | 1764@44 |
| 235/60R18 | 103H | 10 | 29 | 9.4 | 7.0 | 420 A A | 1929@44 |
| 245/45R18 | 100W XL | 10 | 27 | 9.6 | 8.0 | 420 A A | 1764@50 |
